Direct Cooling Block Ice Machine
High Efficiency Industrial Refrigeration Equipment Direct Cooling Block Ice Making Machine for Seafood Processing
Model: KKDB
Min. order: 1 Piece
View Product →
Direct Cooling Block Ice Machine
Commercial Grade Refrigeration System Direct Cooling Block Ice Making Machine for Food Distribution
Request a quotation
Contact KKD for current pricing, configuration and delivery information.
Send Product Inquiry →Chat on WhatsAppFujian KKD Refrigeration Equipment Co., Ltd.
Fujian, China · Manufacturer & Supplier
Product Specifications
| Model NO. | KKDB |
|---|---|
| Ice Making | Contact-Type |
| Cooling Way | Water-Cooled or Air-Cooled |
| Automation | Automation |
| Unit Structure | Integral or Split |
| Machine Size | Large or Medium or Small |
| Ice Temperature | -5℃~-10℃ |
| Ice Shape | Ice Block |
| Certification | RoHS, ISO, CE |
| Condition | New |
| Body Structure | Modular Design, Supports Personalized Customizatio |
| Advantages of Ice Release | Water Defrosting Mode Ensures Faster Ice Release. |
| Ice Discharge Scheme | Optional Ice Pushing Device Available |
| Transport Package | Customize |
| Specification | Customize |
| Trademark | KKD |
| Origin | Fujian, China |
| HS Code | 8418699090 |
| Package Size | 320.00cm * 220.00cm * 270.00cm |
| Package Gross Weight | 230.000kg |
Product Description

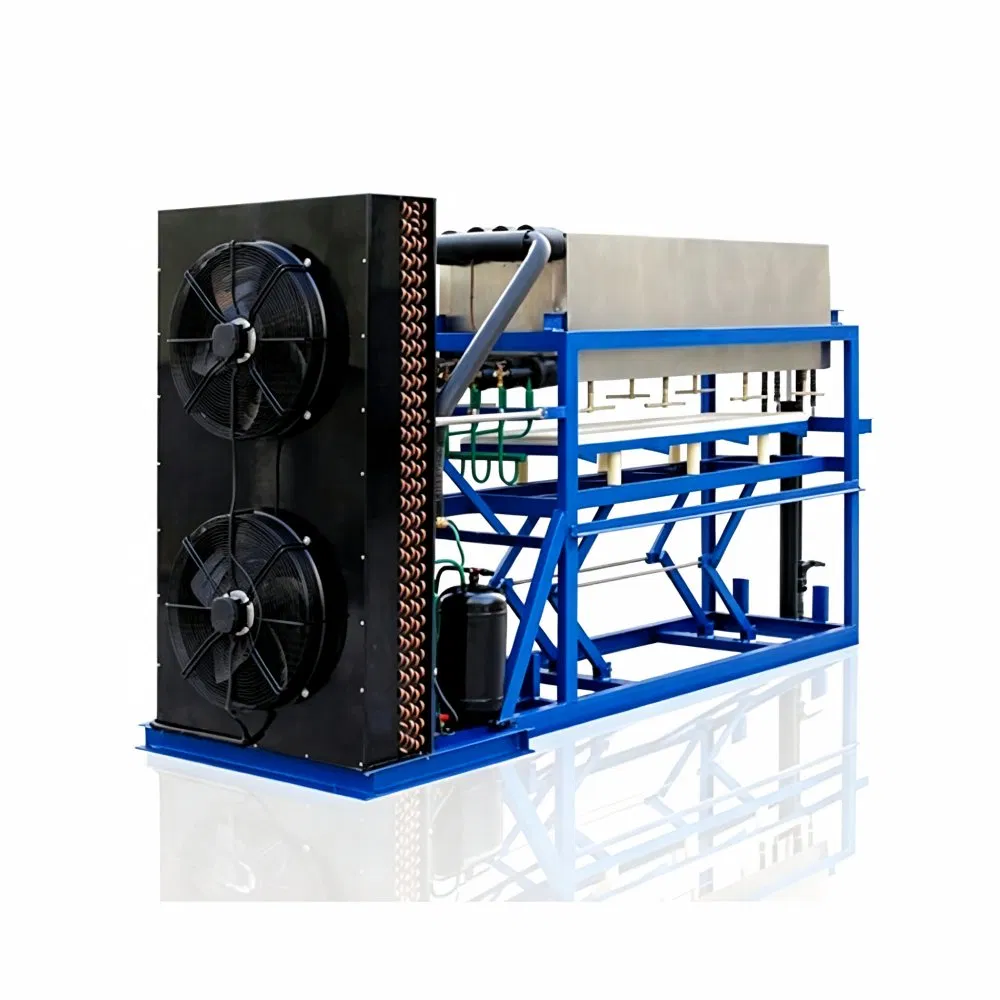

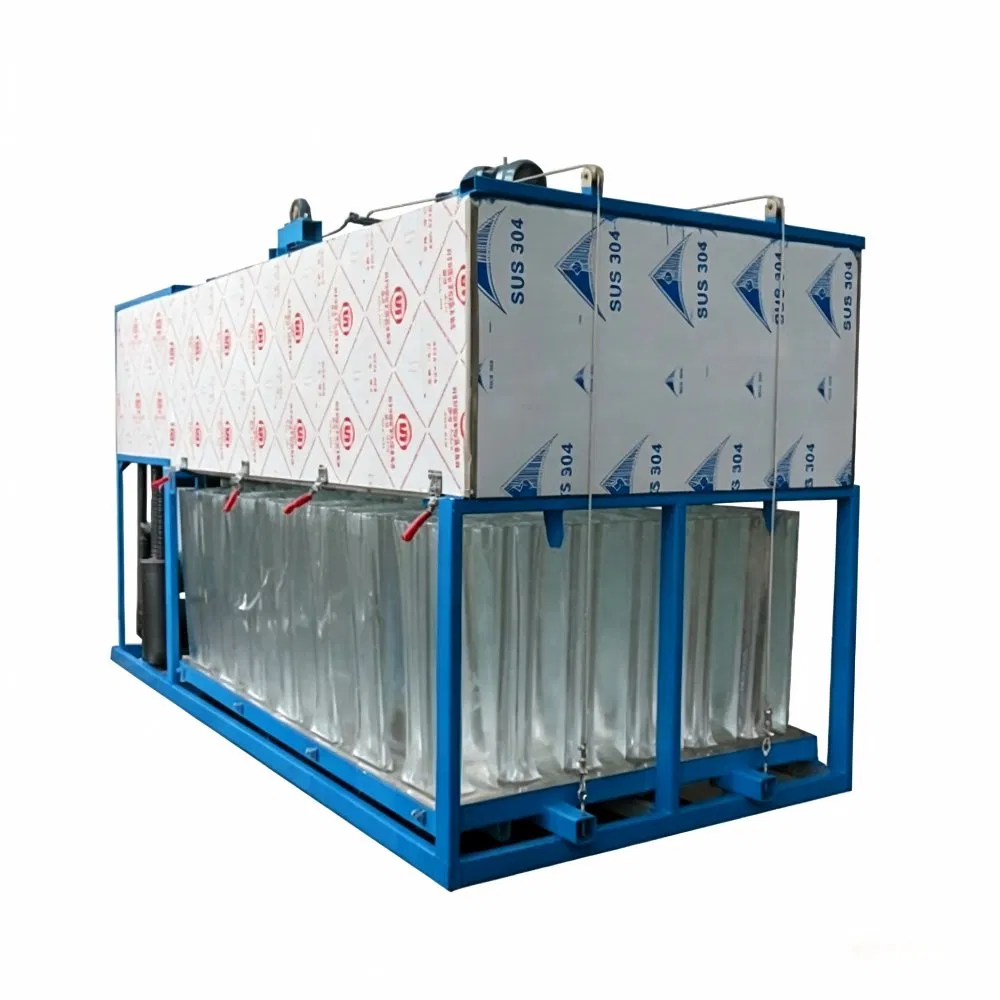

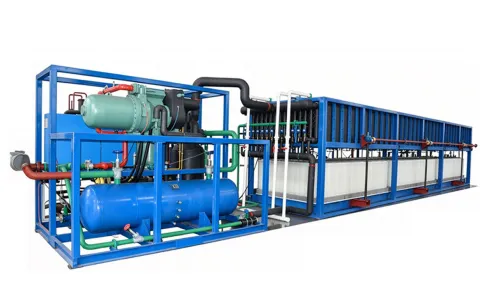

Direct Cooling Block Ice Machine
Block ice features large size, slow melting, low temperature, long storage life and easy transportation, playing an irreplaceable role in specific applications.
·Modular design; transparent ice production available upon customer request.
·Water de-icing method: faster and more energy efficient, less impact on refrigeration system, higher stability and longer service life.
·Optional ice pusher for one-click ice conveying to storage room, saving manual handling work.
·Evaporator adopts threaded rod aluminum plates complying with sanitary standards, welding-free structure, anti-deformation and durable.
·Equipped with automatic control system, unattended operation achievable.
·Modular design; transparent ice production available upon customer request.
·Water de-icing method: faster and more energy efficient, less impact on refrigeration system, higher stability and longer service life.
·Optional ice pusher for one-click ice conveying to storage room, saving manual handling work.
·Evaporator adopts threaded rod aluminum plates complying with sanitary standards, welding-free structure, anti-deformation and durable.
·Equipped with automatic control system, unattended operation achievable.
Use Cases
Product Description

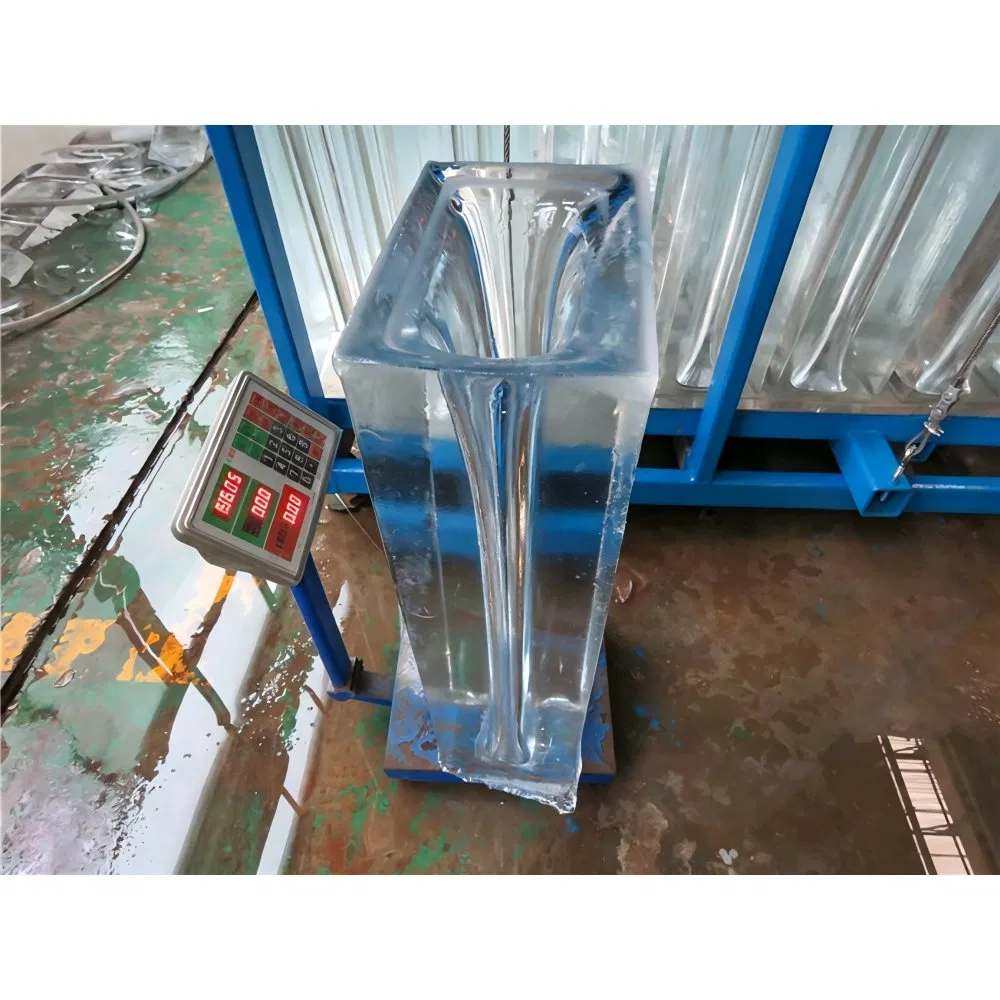

Optional single block ice weight: 30kg, 50kg, 80kg, 100kg.
Available cooling types: air cooling, water cooling, evaporative cooling.
Design working condition:
Ambient Temperature: 22~25℃
Inlet Water Temperature: 15~17℃
Power Supply: 3 Phase 380V-420V, 50/60Hz, customizable
Model | Daily Output | Refrigerant | Working Power | Operating Weight | Ice Weight | Ice Making Cycle | Evaporator dimensions (L×W×H) | Refrigeration unit (L×W×H) |
KKDB-1T | 1T | R404a | 5.5 kw | 920 kg | 5kg | 4hrs | 3510*920*1335 | / |
KKDB-2T | 2T | R404a | 8.9kw | 1220 kg | 10kg | 4hrs | 4060*1100*1700 | / |
KKDB-3T | 3T | R404a | 13kw | 2130 kg | 25kg | 8hrs | 6100*1700*2145 | / |
KKDB-5T | 5T | R404a | 22kw | 3280 kg | 25kg | 8hrs | 5850*1850*2165 | / |
KKDB-10T | 10T | R404a/R22 | 47.1 kw | 5336 kg | 25kg | 11-12hrs | 9300*2645*2550 | / |
KKDB-10T | 10T | R404a/R22 | 47.1 kw | 5336 kg | 50kg | 11-12hrs | 8110*3210*2650 | / |
KKDB-15T | 15T | R404a/R22 | 49.5kw | 5336 kg | 25kg | 11-12hrs | 11060*3300*2550 | / |
KKDB-20T | 20T | R404a/R22 | 70.9kw | 6883 kg | 25kg | 7-8 hrs | 10670*3300*2550 | 3100*1800*2400mm |
KKDB-20T | 20T | R404a/R22 | 70.9kw | 7580 kg | 50kg | 11-12hrs | 10400*2620*2650 | 3100*1800*2400mm |
KKDB-25T | 25T | R404a/R22 | 79.7 kw | 8230 kg | 50kg | 11-12hrs | 10740*3100*2750 | 3200*2800*2700mm |
KKDB-30T | 30T | R404a/R22 | 93.7 kw | 10500 kg | 50kg | 11-12hrs | 12550*3430*2750 | 3200*2200*2700mm |
Specifications are subject to change without prior notice due to technical upgrades.
More Ice Machine
Cube ice machine
Block ice machine
Tube ice machine
Flake ice machine

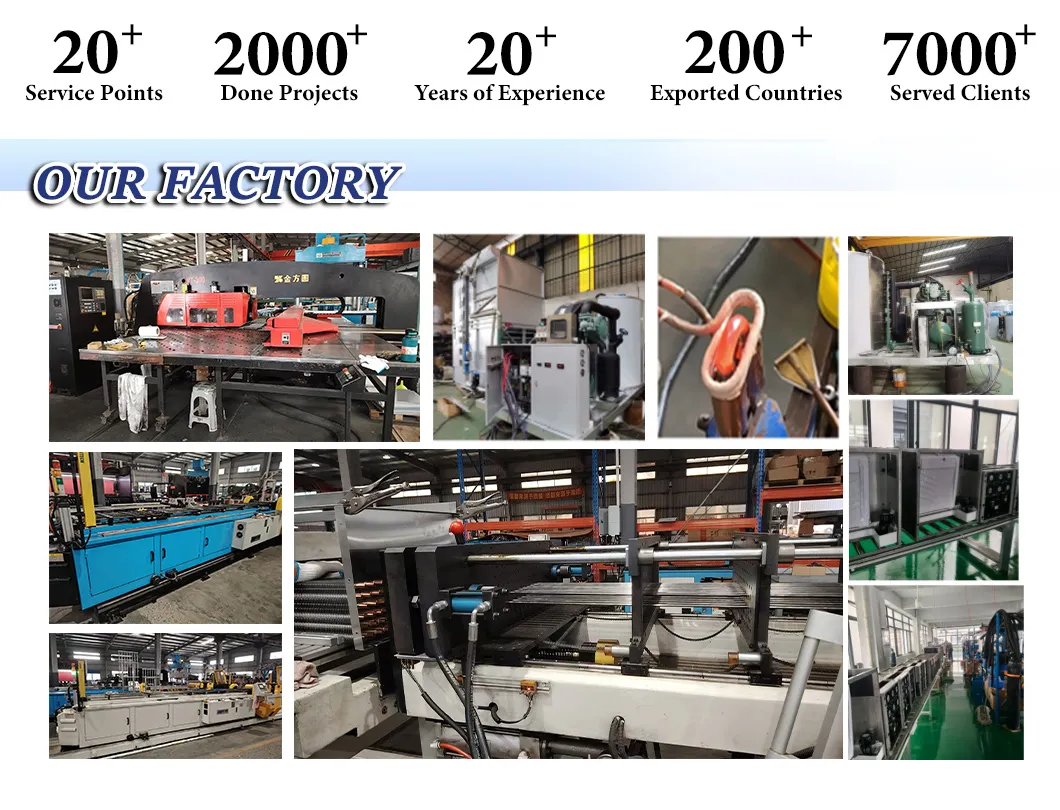

Company Profile
Company Overview
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
More Product Recommendations
Ice Machine
Cold Storage Room
Solar Power System
KKD boasts a professional R&D team and a highly efficient service team. We remain customer-centric, upholding the business philosophy of "Customer First and People-Oriented," while striving to create core value for our clients and fostering mutually beneficial partnerships. Contact us to learn more.
FAQ
What is the warranty period?
We provide a 1-year warranty for the machine.
Can the machine size be customized?
Yes, the machine size and power supply are customizable to fit your specific needs.
What cooling methods are available?
The machines are available with air cooling, water cooling, evaporative cooling, or seawater cooling options.
What is the minimum order quantity?
The minimum order quantity is 1 set.
What payment terms are accepted?
We accept LC, T/T, D/P, PayPal, and Western Union.
What is the lead time for production?
The average lead time is one month for both peak and off-peak seasons.
Do you offer technical support?
Yes, we provide video technical support and online support.
