Cube Ice Machine
High Efficiency Refrigeration Assembly Industrial Cube Ice Making Machine for Seafood Processing and Cold Storage
Request a quotation
Contact KKD for current pricing, configuration and delivery information.
Send Product Inquiry →Chat on WhatsAppFujian KKD Refrigeration Equipment Co., Ltd.
Fujian, China · Manufacturer & Supplier
Product Specifications
| Model NO. | KKDC-1T |
|---|---|
| Ice Making | Flowing |
| Cooling Way | Water-Cooled or Air-Cooled |
| Automation | Automation |
| Unit Structure | Integral Type Separated or Type |
| Machine Size | Large or Medium or Small |
| Ice Temperature | -5℃~-10℃ |
| Ice Shape | Cube Ice |
| Application Fields | Food Processing Aquatic Fishery Supermarket Fresh |
| Certification | RoHS, ISO, CE |
| Condition | New |
| Cooling System | Dual-Circuit Heat Exchange System |
| Structural Design | Integrated Modular Design |
| Ice Performance | High Density and Slow Melting |
| Transport Package | Customize |
| Specification | Customize |
| Trademark | KKD |
| Origin | Fujian, China |
| HS Code | 8418699090 |
| Package Size | 560.00cm * 830.00cm * 157.00cm |
| Package Gross Weight | 120.000kg |
Product Description
Cube ice machine

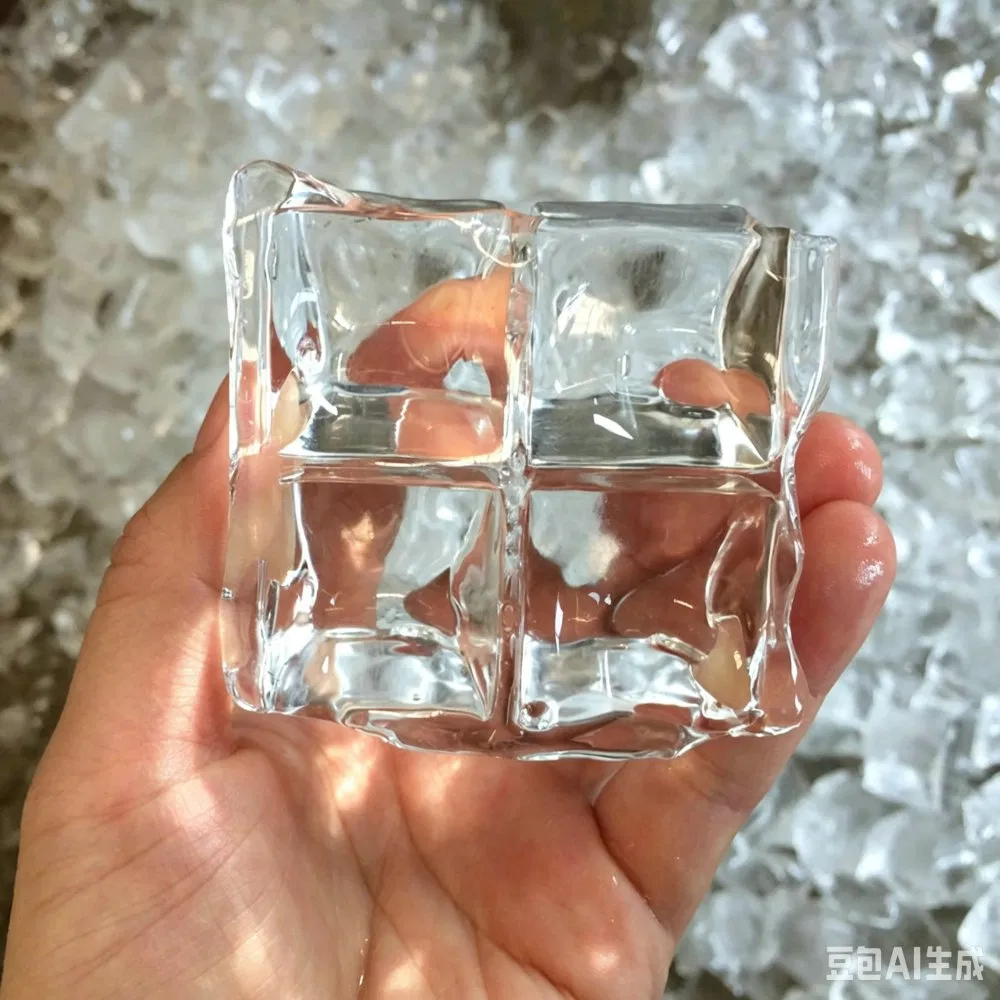

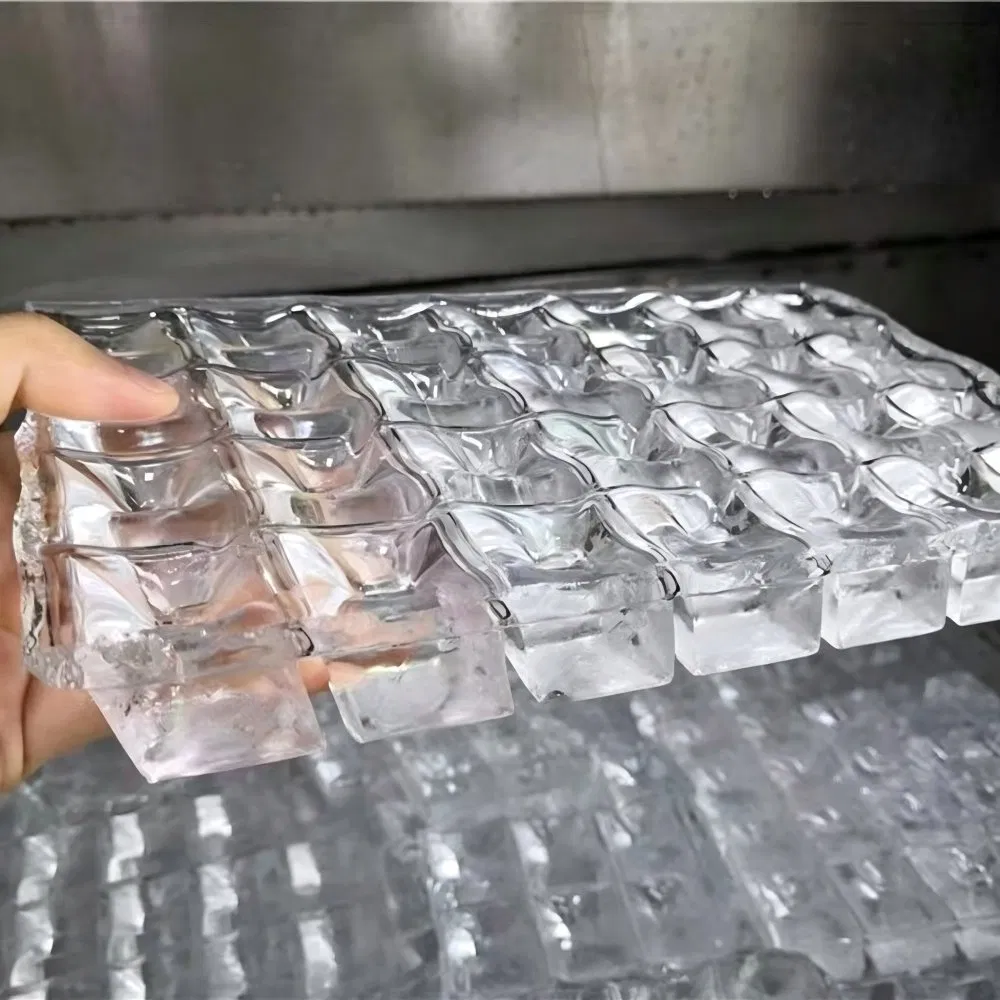

Cube ice machines are widely applied in hotels, bars, coffee & cold beverage shops, catering businesses, food processing plants and ice factories. Cube ice features transparency, attractive appearance, cleanliness and sanitation. Its high density enables slow melting.
·Constructed with food-grade stainless steel, the ice produced is edible.
·PLC automatic control system supports unattended operation to cut costs.
·Dual-circuit heat exchange system ensures safety, stability and high efficiency.
·Comes with ice storage bin; optional stainless steel spiral conveyor can connect to warehouse or packaging production line.
·Independently developed and manufactured. We keep optimizing every technical procedure for superior overall performance.
·Integrated modular design for easy transportation and maintenance.
·PLC automatic control system supports unattended operation to cut costs.
·Dual-circuit heat exchange system ensures safety, stability and high efficiency.
·Comes with ice storage bin; optional stainless steel spiral conveyor can connect to warehouse or packaging production line.
·Independently developed and manufactured. We keep optimizing every technical procedure for superior overall performance.
·Integrated modular design for easy transportation and maintenance.
Use Cases
Product Description

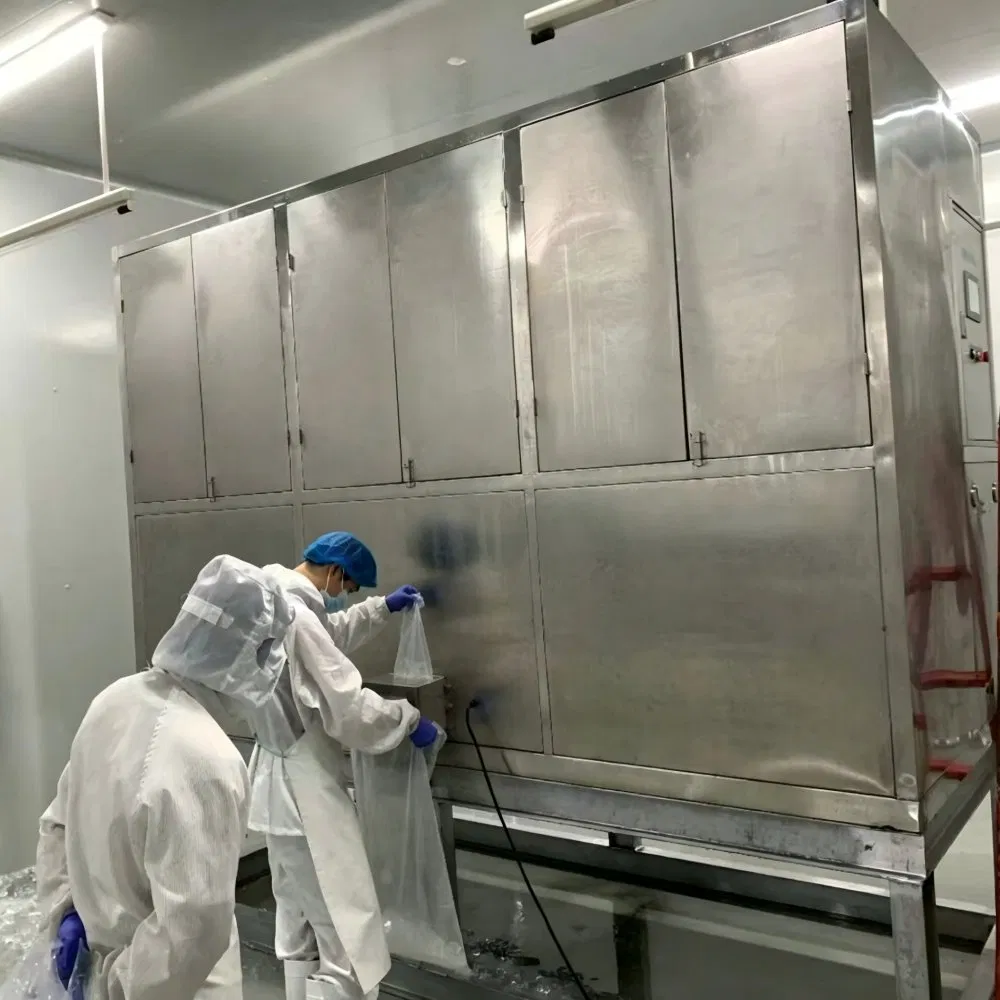

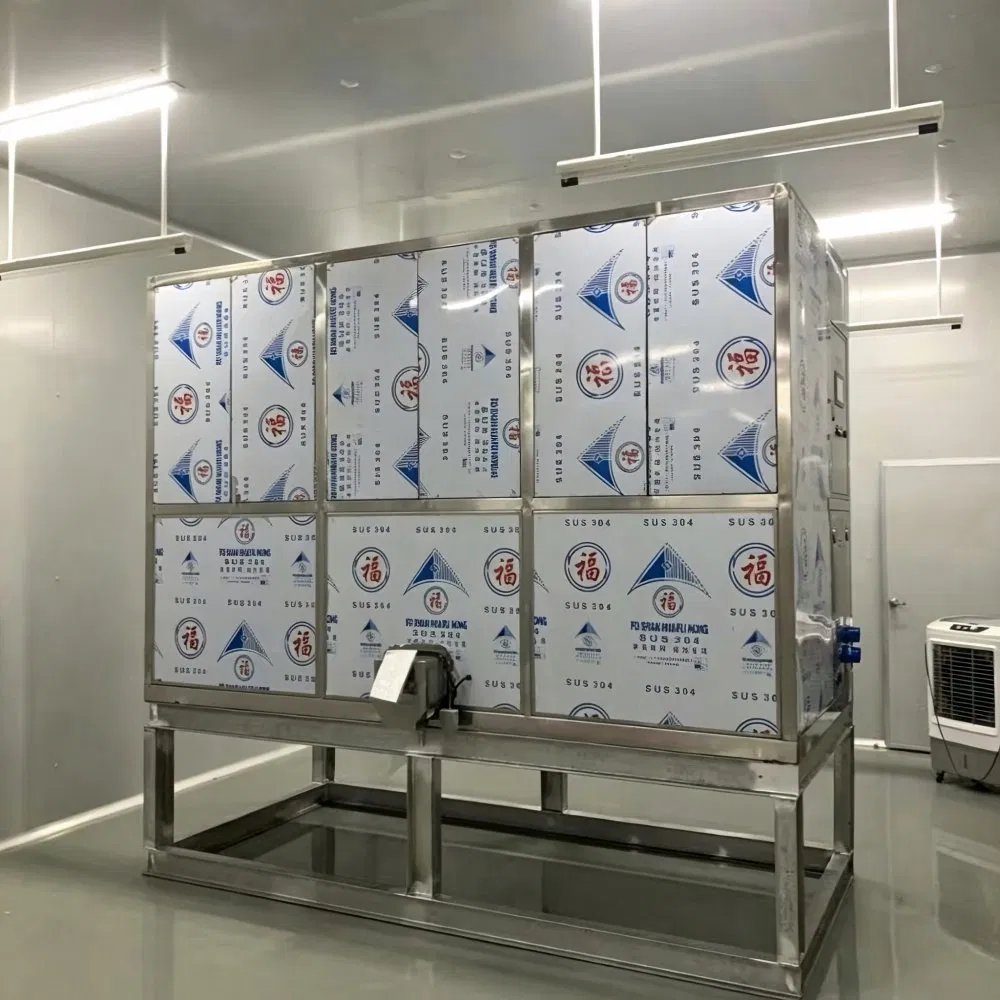

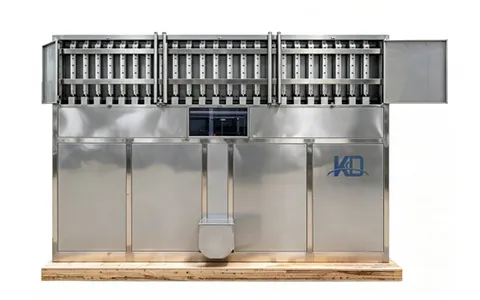

Industrial Cube Ice Machine
KKDC-T series large capacity cube ice machines are designed for industrial and mass ice production. The daily ice output ranges from 0.5 tons to 20 tons to satisfy high-volume demand.
Produced cube ice features high density, transparency and slow melting property. The whole unit adopts sturdy industrial structure and modular design, convenient for installation, maintenance and connection with automatic conveying and packaging lines.
This series is ideal for large-scale ice factories, aquatic product preservation, food processing plants, beverage factories, large catering groups and other scenarios requiring continuous massive ice supply.
This series is ideal for large-scale ice factories, aquatic product preservation, food processing plants, beverage factories, large catering groups and other scenarios requiring continuous massive ice supply.
Ambient Temp:25°C
Inlet Water:18°C
Power Supply:3P/380V~420V/50Hz/60Hz
Water Inlet Pressure:0.1MPa~0.5MPa
Model | KKDSF-1T | KKDSF-2T | KKDSF-3T | KKDSF-4T | KKDSF-5T |
Daily Ice Output | 1 Ton | 2 Tons | 3 Tons | 4 Tons | 5 Tons |
Refrigeration Capacity | 6.7 kW | 12.2 kW | 17.2 kW | 28.8 kW | 31.6 kW |
Total Power Consumption | 5.04 kW | 8.91 kW | 12.24 kW | 17.54 kW | 22.39 kW |
Compressor Power | 4.15 kW | 7.67 kW | 11 kW | 17.05 kW | 20.4 kW |
Refrigerant Type | R404a | R404a | R404a | R404a | R404a |
Cooling Method | Seawater Cooling | Seawater Cooling | Seawater Cooling | Seawater Cooling | Seawater Cooling |
Operating Weight | 500 kg | 600 kg | 650 kg | 860 kg | 1050 kg |
Main Unit Dimensions (LWH) | 1320*900*1050 mm | 1500*1200*1250 mm | 1500*1200*1350 mm | 1800*1500*1510 mm | 1800*1500*1620 mm |

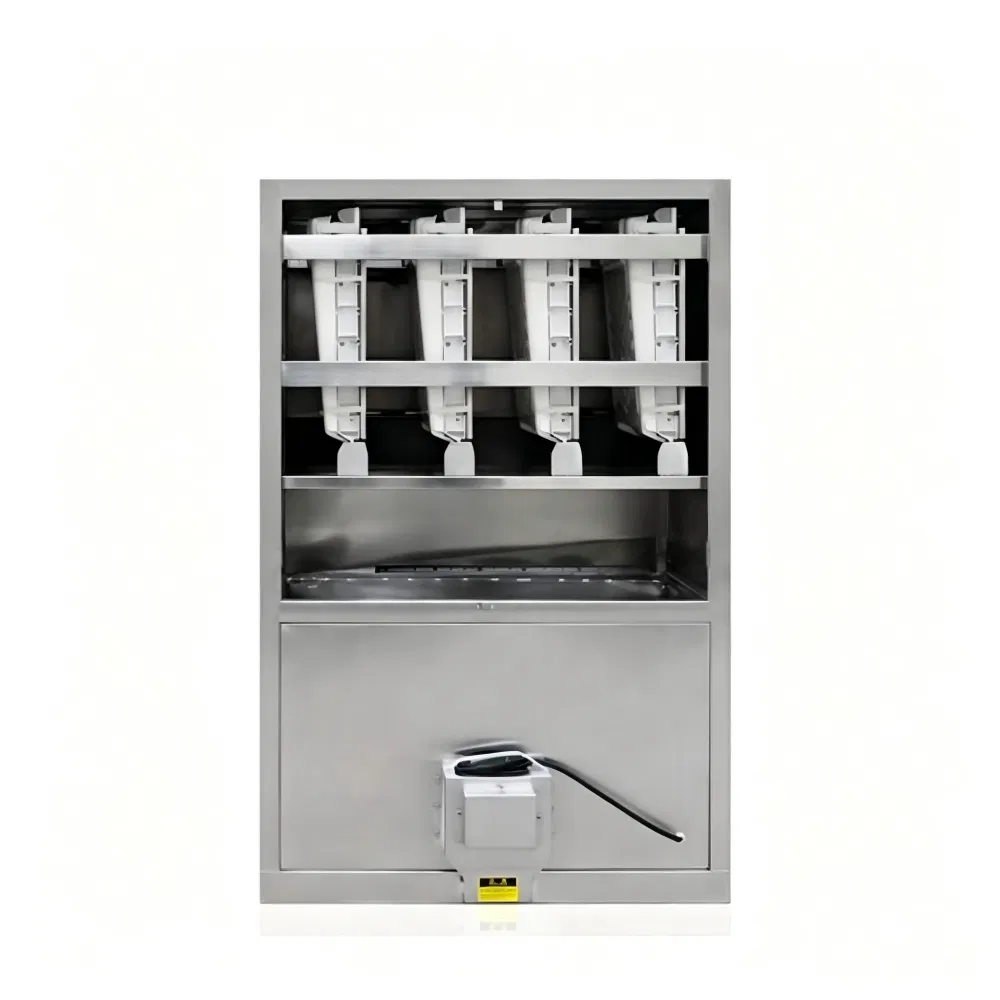

Commercial Cube Ice Machine
Our KKDC series cube ice machines adopt R290 and R404a refrigerants, covering daily ice-making capacity ranging from 40kg to 1000kg. Multiple models are available to meet different production demands. Equipped with independent ice storage bins, the machines feature different ice plate quantities, stable power configurations and compact overall dimensions for flexible placement. Made of food-grade materials, the equipment produces clear, high-density cube ice that melts slowly.
Cube ice machines are widely applied in hotels, bars, coffee shops, cold beverage stores, catering businesses, food processing factories and professional ice-making plants.
Ambient Temp:25°C
Inlet Water:18°C
Power Supply:3P/380V~420V/50Hz/60Hz
Water Inlet Pressure:0.1MPa~0.5MPa
Model | Refrigerant | Ice capacity(kg) | Storage Capacity(kg) | Ice Plate | Power | Dimensions (mm) |
KKDC-80 | R290 | 40 | 18kg | 5*9=45 | 220V/240W | 500*450*840 |
KKDC-100 | R290 | 60 | 18kg | 5*12=60 | 220V/330W | 500*450*840 |
KKDC-120 | R290 | 80 | 18kg | 6*12=72 | 220V/430W | 500*450*840 |
KKDC-175 | R290 | 100 | 41kg | 5*18=90 | 220V/750W | 660*675*950 |
KKDC-210 | R290 | 130 | 41kg | 6*18=108 | 220V/800W | 660*675*950 |
KKDC-300 | R290 | 150 | 41kg | 7*18=126 | 220V/850W | 660*675*950 |
KKDC-350 | R290 | 200 | 100kg | 12*13=156 | 220V/900W | 560*850*1590 |
KKDC-450 | R404a | 250 | 100kg | 13*14=182 | 220V/990W | 560*850*1590 |
KKDC-500 | R404a | 300 | 150kg | 13*18=234 | 220V/1240W | 760*850*1680 |
KKDC-750 | R404a | 350 | 150kg | 13*21=273 | 220V/1425W | 760*850*1780 |
KKDC-1000 | R404a | 500 | 150kg | 18*19=342 | 220V/2300W | 760*850*1780 |
KKDC-1500 | R404a | 750 | 500kg | 13212=546 | 380V/3200W | 1220*870*2000 |
KKDC-2000 | R404a | 1000 | 500kg | 21192=798 | 380V/4500W | 1220*950*2000 |
More Ice Machine
Cube ice machine
Block ice machine
Tube ice machine
Flake ice machine
Company Profile
Company Overview
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
More Product Recommendations
Ice Machine
Cold Storage Room
Solar Power System
KKD boasts a professional R&D team and a highly efficient service team. We remain customer-centric, upholding the business philosophy of "Customer First and People-Oriented," while striving to create core value for our clients and fostering mutually beneficial partnerships. Contact us to learn more.
FAQ
What is the warranty period?
We provide a 1-year warranty for the machine.
Can the machine size be customized?
Yes, the machine size and power supply are customizable to fit your specific needs.
What cooling methods are available?
The machines are available with air cooling, water cooling, evaporative cooling, or seawater cooling options.
What is the minimum order quantity?
The minimum order quantity is 1 set.
What payment terms are accepted?
We accept LC, T/T, D/P, PayPal, and Western Union.
What is the lead time for production?
The average lead time is one month for both peak and off-peak seasons.
Do you offer technical support?
Yes, we provide video technical support and online support.
