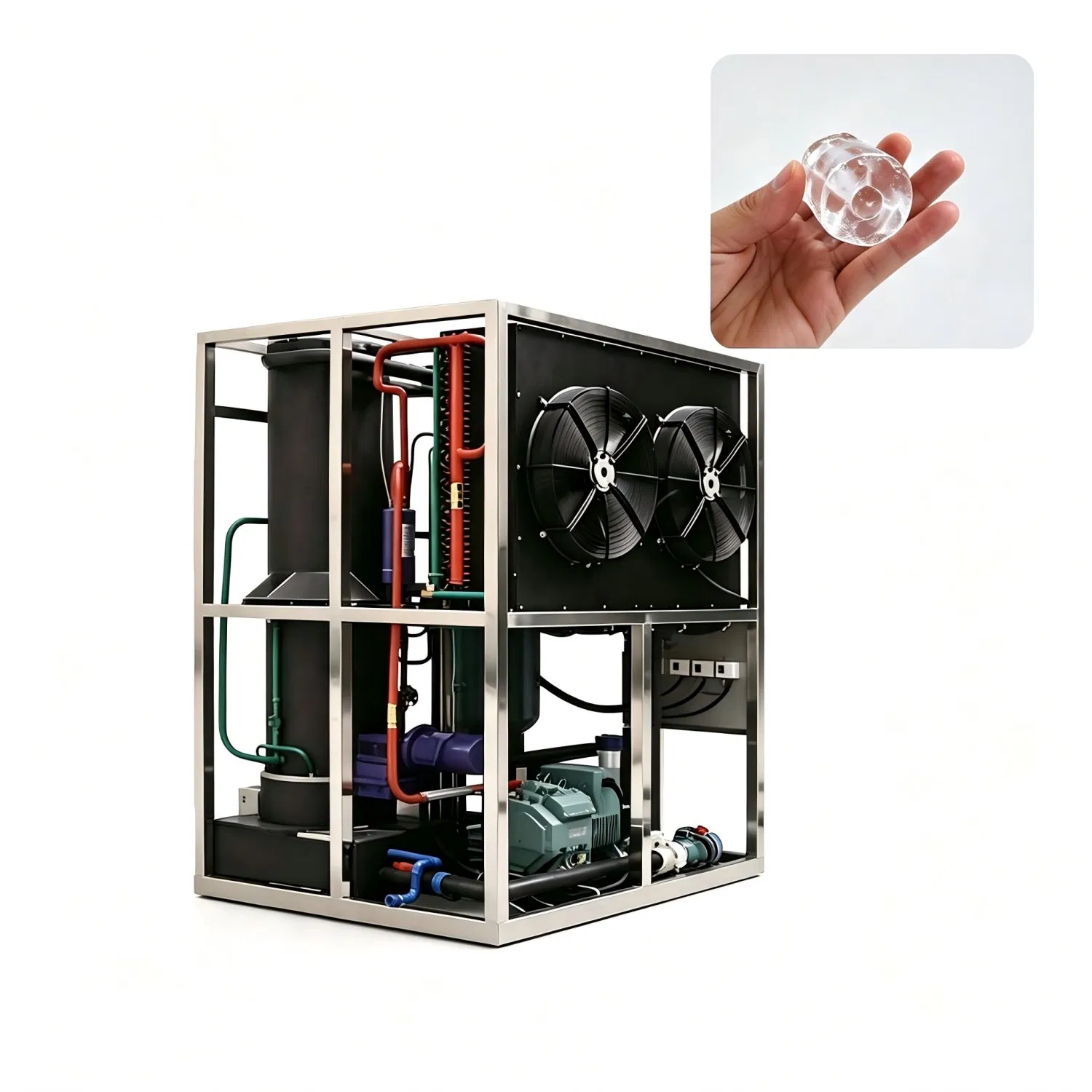

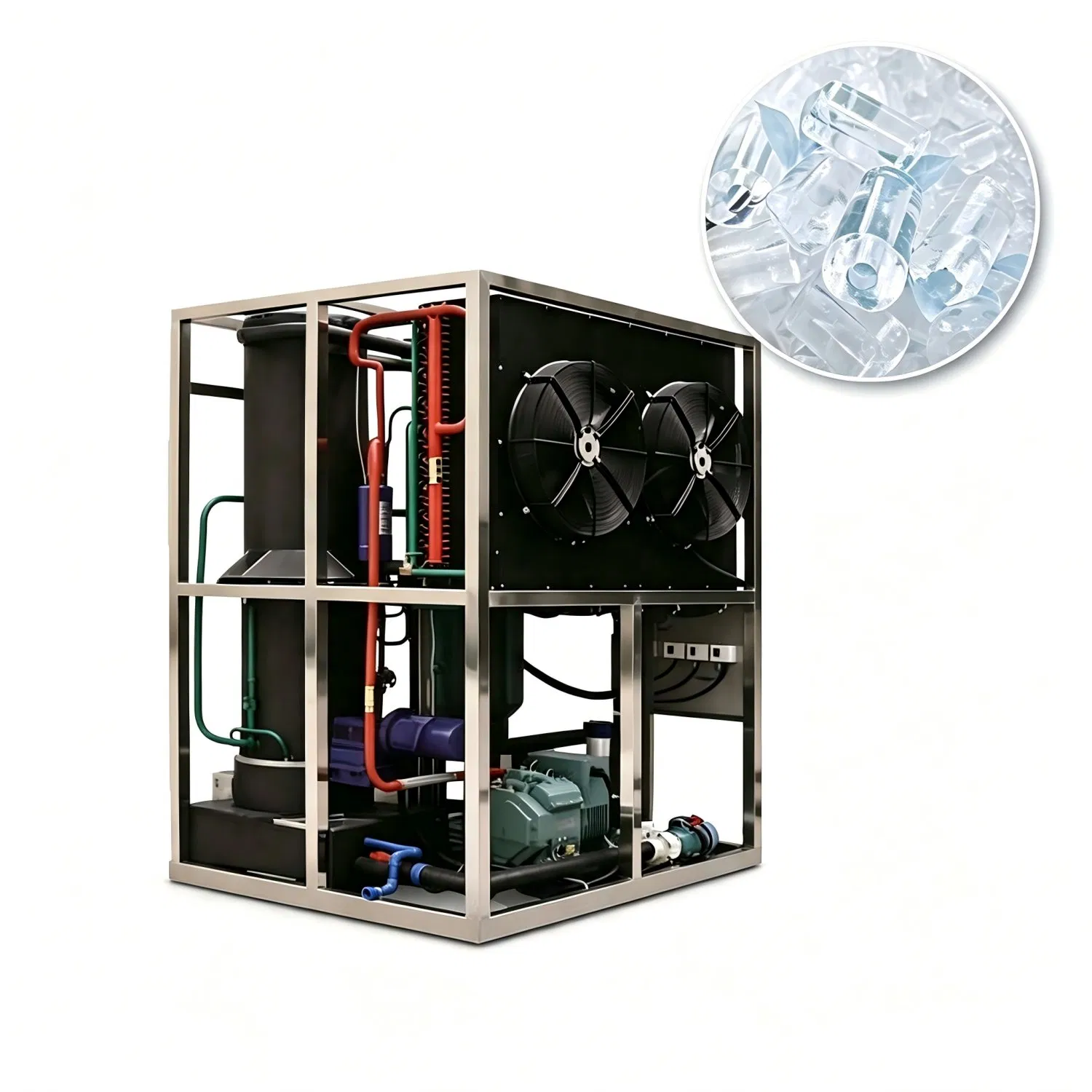

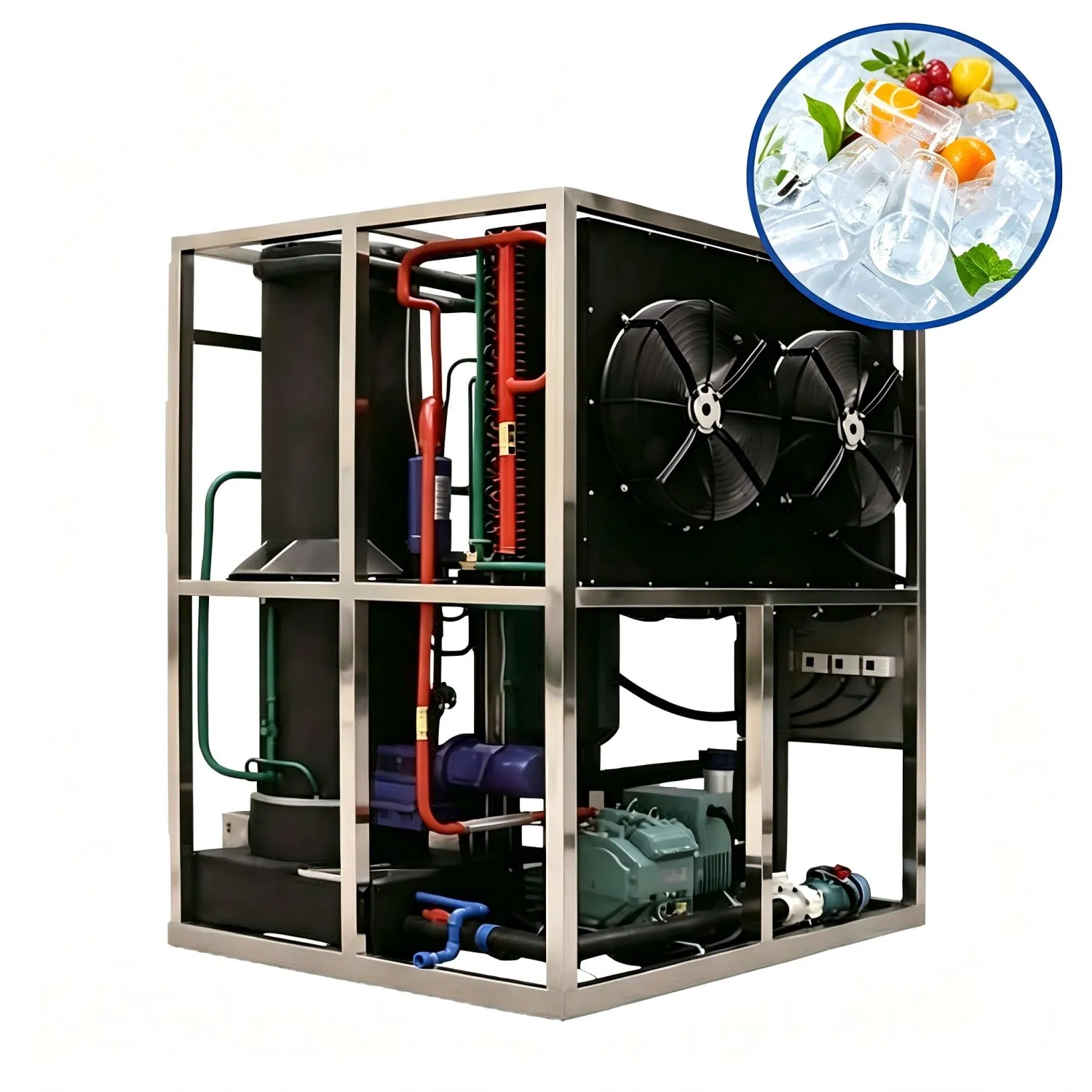

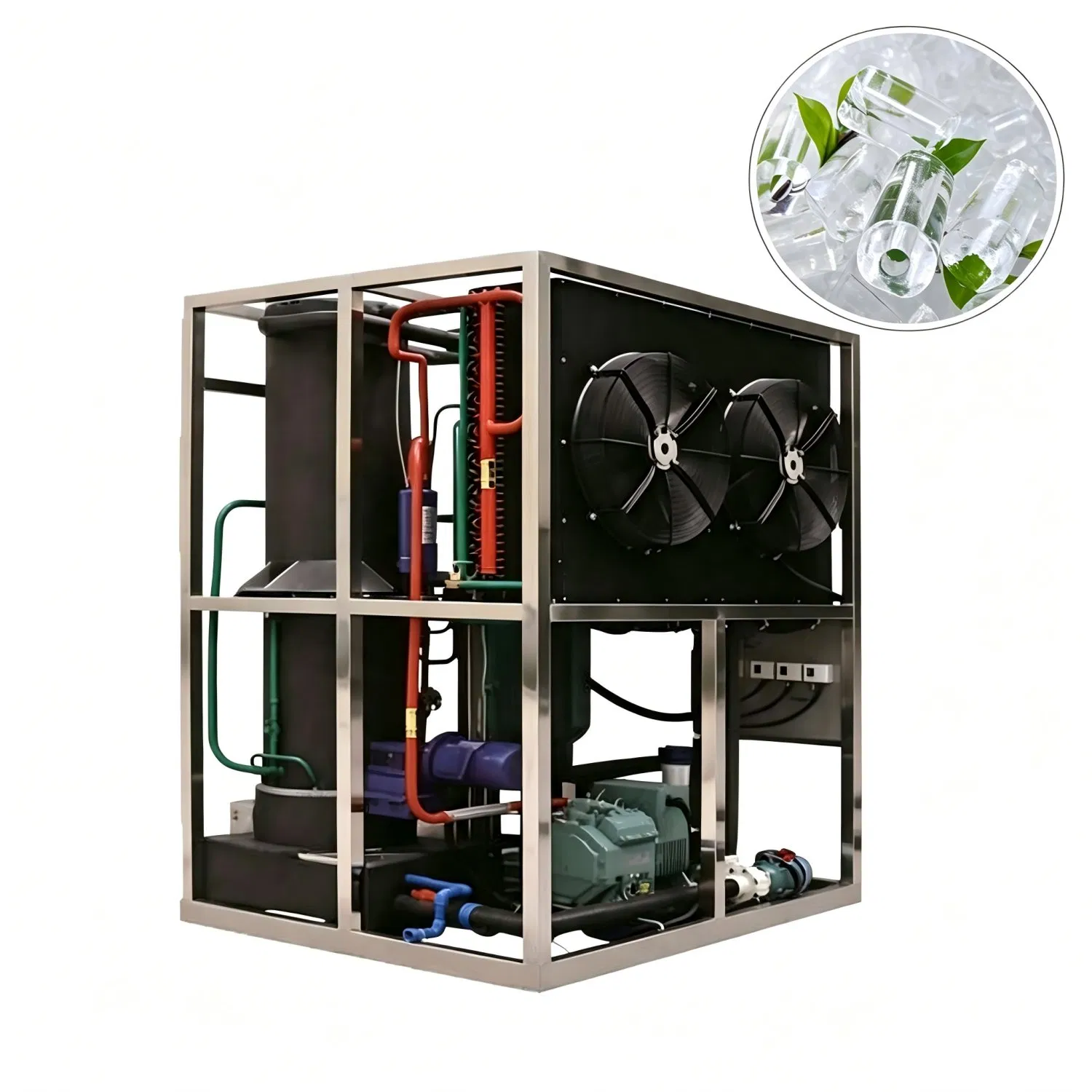

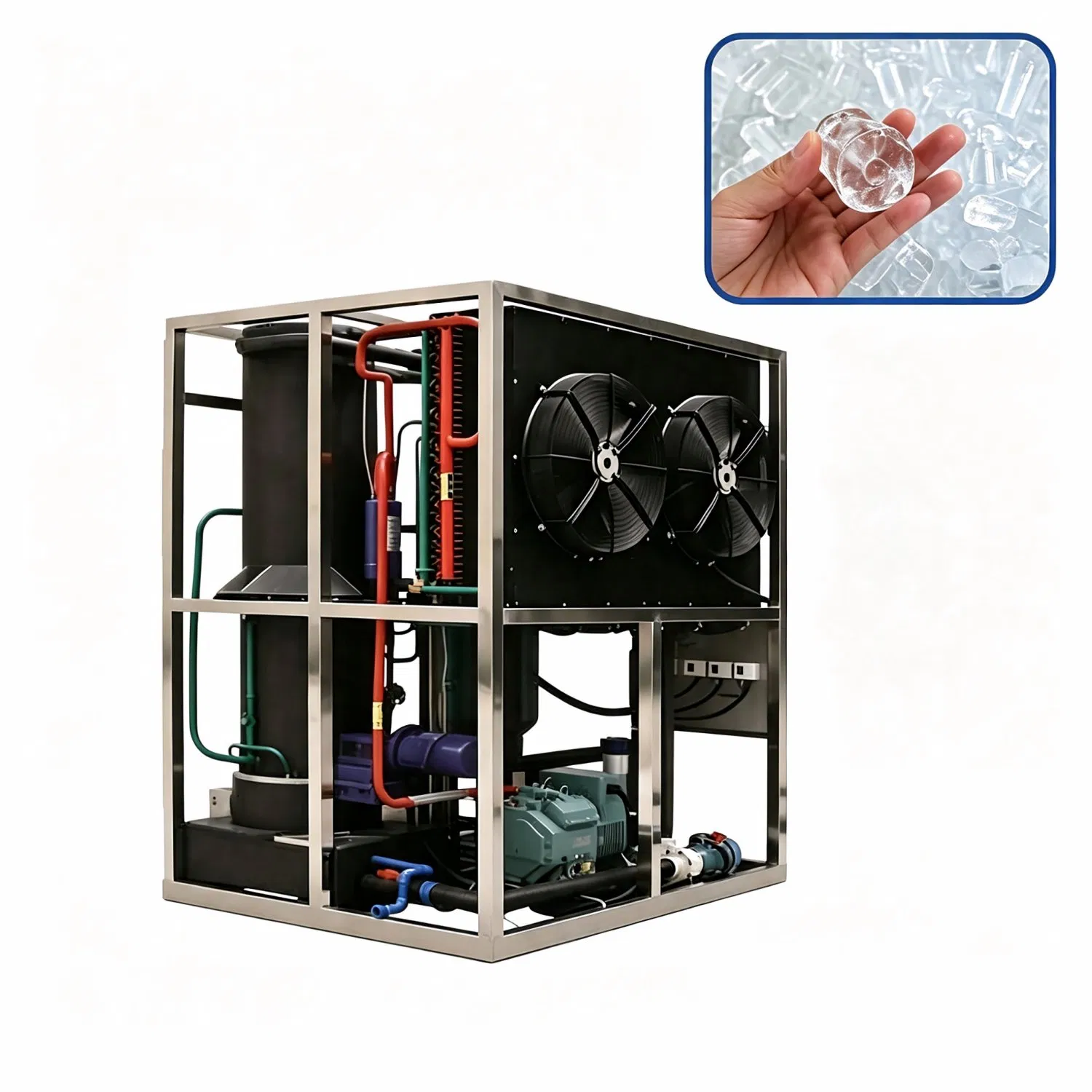

Tube Ice Machine
1 Ton Insulated Control Kit Tube Ice Making Machine for Large Concrete Construction
Model: KKDF
Min. order: 1 Piece
View Product →
Tube Ice Machine
1 Ton Durable Hygienic Build Tube Ice Making Machine for Chemical Plant
Request a quotation
Contact KKD for current pricing, configuration and delivery information.
Send Product Inquiry →Chat on WhatsAppFujian KKD Refrigeration Equipment Co., Ltd.
Fujian, China · Manufacturer & Supplier
Product Specifications
| Model NO. | KKDF |
|---|---|
| Control Way | Digital and Automatic Way |
| Compressor Brand | Multiple Famous Brands |
| Trademark | KKD |
| Specification | customizable |
| Origin | Fujian, China |
| HS Code | 8418699090 |
| Customization | Available |
| Transport Package | Standard Export Packing |
Product Description

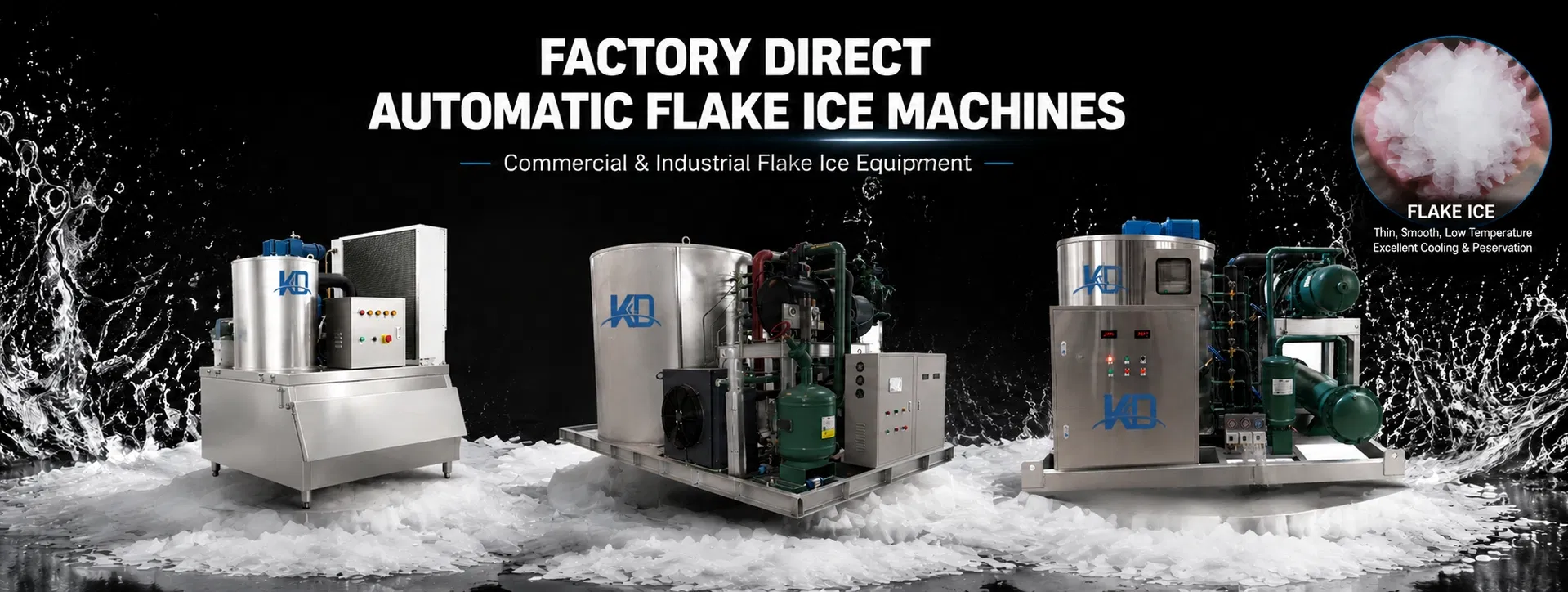

Flake lce Machine
Flake ice is thin and smooth with large contact area and low temperature. It rapidly cools contacted materials to deliver outstanding cooling & fresh-keeping results. The machine is easy to operate and boasts high cost performance.
· Full product lineup of flake ice machines to fit various application scenarios.
· Optional evaporator materials based on working environments for maximum working efficiency.
· Integrated ice cutting structure, safe operation, energy efficient and high ice output performance.
· Automatic direct water feeding & dry evaporation technology, matched with secure & user-friendly control system.
· Full modular construction for easy installation and simple daily maintenance.
· Self-developed & self-manufactured, every production process optimized for superior overall performance.
· All refrigeration spare parts sourced from well-known brands, ensuring efficient and stable running.
· Optional evaporator materials based on working environments for maximum working efficiency.
· Integrated ice cutting structure, safe operation, energy efficient and high ice output performance.
· Automatic direct water feeding & dry evaporation technology, matched with secure & user-friendly control system.
· Full modular construction for easy installation and simple daily maintenance.
· Self-developed & self-manufactured, every production process optimized for superior overall performance.
· All refrigeration spare parts sourced from well-known brands, ensuring efficient and stable running.
Use Cases
Characteristics of flake ice: thin, flake-like shape (1–2.5 mm); ice temperature of -6°C to -12°C; large specific surface area; rapid cooling capability; soft texture without sharp edges; and a dry, non-clumping nature. It is suitable for applications requiring rapid direct cooling, material mixing, or large-area coverage, serving seven major sectors: fisheries and aquaculture, food processing, retail and catering, engineering and infrastructure, chemicals and pharmaceuticals, cold chain logistics, and specialized industries.
Product Description
Seawater Flake lce Machine For Boat
1.Seawater directly cooling and making ice, save costs and greatly facilitate ocean operations.
2.Designed for the marine environment, using stainless steel evaporator and condenser, corrosion-resistant and suitable for high temperature and humidity environments.
3.Closed water supply system that adapts to the shaking environment of ocean ships.
4.Adapt to offshore operations such as cruise ships, fishing boats, and ocean vessels.
Ambient Temperature: 25°C
Inlet Water Temperature: 18°C
Flake Ice Thickness: 1.5~2.2 mm
Power Supply: 3-phase 380V~420V, 50Hz/60Hz or Customized
Inlet Water Pressure: 0.1 MPa ~ 0.5 MPa
Inlet Water Temperature: 18°C
Flake Ice Thickness: 1.5~2.2 mm
Power Supply: 3-phase 380V~420V, 50Hz/60Hz or Customized
Inlet Water Pressure: 0.1 MPa ~ 0.5 MPa
Model | KKDSF-1T | KKDSF-2T | KKDSF-3T | KKDSF-4T | KKDSF-5T |
Daily Ice Output | 1 Ton | 2 Tons | 3 Tons | 4 Tons | 5 Tons |
Refrigeration Capacity | 6.7 kW | 12.2 kW | 17.2 kW | 28.8 kW | 31.6 kW |
Total Power Consumption | 5.04 kW | 8.91 kW | 12.24 kW | 17.54 kW | 22.39 kW |
Compressor Power | 4.15 kW | 7.67 kW | 11 kW | 17.05 kW | 20.4 kW |
Refrigerant Type | R404a | R404a | R404a | R404a | R404a |
Cooling Method | Seawater Cooling | Seawater Cooling | Seawater Cooling | Seawater Cooling | Seawater Cooling |
Operating Weight | 500 kg | 600 kg | 650 kg | 860 kg | 1050 kg |
Main Unit Dimensions (LWH) | 1320*900*1050 mm | 1500*1200*1250 mm | 1500*1200*1350 mm | 1800*1500*1510 mm | 1800*1500*1620 mm |
Commercial Flake Ice Machine
This text describes KKDF 0.3T–3T air-cooled flake ice machines. They make soft, thin ice, require no water cooling and are easy to install. Widely used for seafood, food processing, catering, labs, small industrial cooling and fresh cold chain, with clear model selection guidance for different business sizes.
Ambient Temperature: 25°C
Inlet Water Temperature: 18°C
Ice Flake Thickness: 1.5~2.2mm
Power Supply: 3-phase 380V/50Hz, 220V/50Hz or Customizable
Water Inlet Pressure: 0.1MPa~0.5MPa
Inlet Water Temperature: 18°C
Ice Flake Thickness: 1.5~2.2mm
Power Supply: 3-phase 380V/50Hz, 220V/50Hz or Customizable
Water Inlet Pressure: 0.1MPa~0.5MPa
Model | KKDF-0.3T | KKDF-0.5T | KKDF-1T | KKDF-1.5T | KKDF-2T | KKDF-3T |
Daily Output (Ton) | 0.3T | 0.5T | 1T | 1.5T | 2T | 3T |
Refrigerating Capacity (kW) | 2.1 | 3.0 | 5.8 | 8.6 | 12.3 | 18.3 |
Total Power (kW) | 1.5 | 2.4 | 4.6 | 6.8 | 8.47 | 11.6 |
Compressor Power (kW) | 1.2 | 2.0 | 3.4 | 5.3 | 7.0 | 10.2 |
Refrigerant Type | R404a | R404a | R404a | R404a | R404a | R404a |
Cooling Method | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
Operating Weight (kg) | 170 | 190 | 330 | 380 | 480 | 600 |
Main Unit Dimensions (mm) | 1030*650*710 | 1170*650*750 | 1370*800*900 | 1410*900*1000 | 1500*1000*1080 | 1670*1200*1250 |
Dimensions with Ice Bin (mm) | 1030*800*1545 | 1170*900*1750 | 1370*1030*2035 | 1410*1320*2200 | 1500*1380*2280 | 1670*1610*2550 |
Large Flake Ice Machine
KKDF 5T~30T large industrial flake ice makers produce dry 1.5~2.2mm flake ice with large contact area. The 5T model is air-cooled, while 8T and above adopt water cooling with higher ice-making efficiency. They are ideal for docks, factories and large projects requiring massive continuous ice supply, covering fishery processing, large food factories for meat, bakery and fruits, infrastructure like dams and bridges, chemical & pharmaceutical industries, large fresh cold chain, mines and exhibitions. Model selection guidance by tonnage is also provided to fit production and construction of different scales.
Ambient Temperature: 25°C
Inlet Water Temperature: 18°C
Flake Ice Thickness: 1.5~2.2mm
Power Supply: 3-phase 380V~420V, 50Hz/60Hz or Customizable
Water Inlet Pressure: 0.1MPa~0.5MPa
Inlet Water Temperature: 18°C
Flake Ice Thickness: 1.5~2.2mm
Power Supply: 3-phase 380V~420V, 50Hz/60Hz or Customizable
Water Inlet Pressure: 0.1MPa~0.5MPa
Model | KKDF-5T | KKDF-8T | KKDF10T | KKDF-15T | KKDF-20T | KKDF-25T | KKDF-30T |
Daily Output (Ton) | 5T | 8T | 10T | 15T | 20T | 25T | 30T |
Refrigerating Capacity (kW) | 30.9 | 47.9 | 67.4 | 96.9 | 120.6 | 157.3 | 191 |
Total Power (kW) | 19.2 | 29.3 | 38.2 | 48.5 | 59.5 | 77.6 | 90.2 |
Compressor Power (kW) | 16 | 22.7 | 31.6 | 41.9 | 50.2 | 64.9 | 77.5 |
Refrigerant Type | R404a | R404a/R22 | R404a/R22 | R404a/R22 | R404a/R22 | R404a/R22 | R404a/R22 |
Cooling Method | Air Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
Operating Weight (kg) | 960 | 1670 | 2250 | 3650 | 4410 | 4960 | 5380 |
Main Unit Dimensions (mm) | 189015001400 | 250019001690 | 250019001830 | 250019002350 | 330021002100 | 330021002360 | 410021002640 |
More Ice Machine
Cube ice machine
Block ice machine
Tube ice machine
Flake ice machine
Company Profile
Company Overview
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
Fujian KKD Refrigeration Equipment Co., Ltd. (formerly Fujian Xinghongda Refrigeration Equipment Co., Ltd.) was established in 2000 and is headquartered in the Yuanhong Development Zone, Fuqing, Fuzhou. With a total investment exceeding RMB 50 million and covering an area of over 30,000 square meters, the company is a comprehensive industrial enterprise integrating R&D, manufacturing, and trade in the field of professional refrigeration equipment.
Development & Capabilities
With over 20 years of deep industry experience, KKD has evolved into a leading supplier of cold chain refrigeration equipment, serving both domestic and international markets. KKD maintains close partnerships with various universities and research institutes; leveraging modern management practices and advanced manufacturing techniques, it provides customers with full-chain products and technical support services.
Product Portfolio
The cold storage product line encompasses condensers, air coolers, semi-hermetic and hermetic condensing units, medium-to-large parallel screw compressor units, polyurethane insulation panels, and cleanroom panels—all of which are integral components of a complete cold storage system. Such systems comprise cold storage panels, refrigeration units, air coolers, and electrical control systems, and are available in both on-site assembled and mobile configurations.
The ice-making product range includes flake ice machines, tube ice machines, cube ice machines, plate ice machines, direct-cooling and brine-tank block ice machines, marine-grade seawater ice machines, clear ice machines, and containerized ice-making units, with daily production capacities ranging from 300 kg to 60 tons.
More Product Recommendations
Ice Machine
Cold Storage Room
Solar Power System
KKD boasts a professional R&D team and a highly efficient service team. We remain customer-centric, upholding the business philosophy of "Customer First and People-Oriented," while striving to create core value for our clients and fostering mutually beneficial partnerships. Contact us to learn more.
FAQ
What is the warranty period?
We provide a 1-year warranty for the machine.
Can the machine size be customized?
Yes, the machine size and power supply are customizable to fit your specific needs.
What cooling methods are available?
The machines are available with air cooling, water cooling, evaporative cooling, or seawater cooling options.
What is the minimum order quantity?
The minimum order quantity is 1 set.
What payment terms are accepted?
We accept LC, T/T, D/P, PayPal, and Western Union.
What is the lead time for production?
The average lead time is one month for both peak and off-peak seasons.
Do you offer technical support?
Yes, we provide video technical support and online support.
